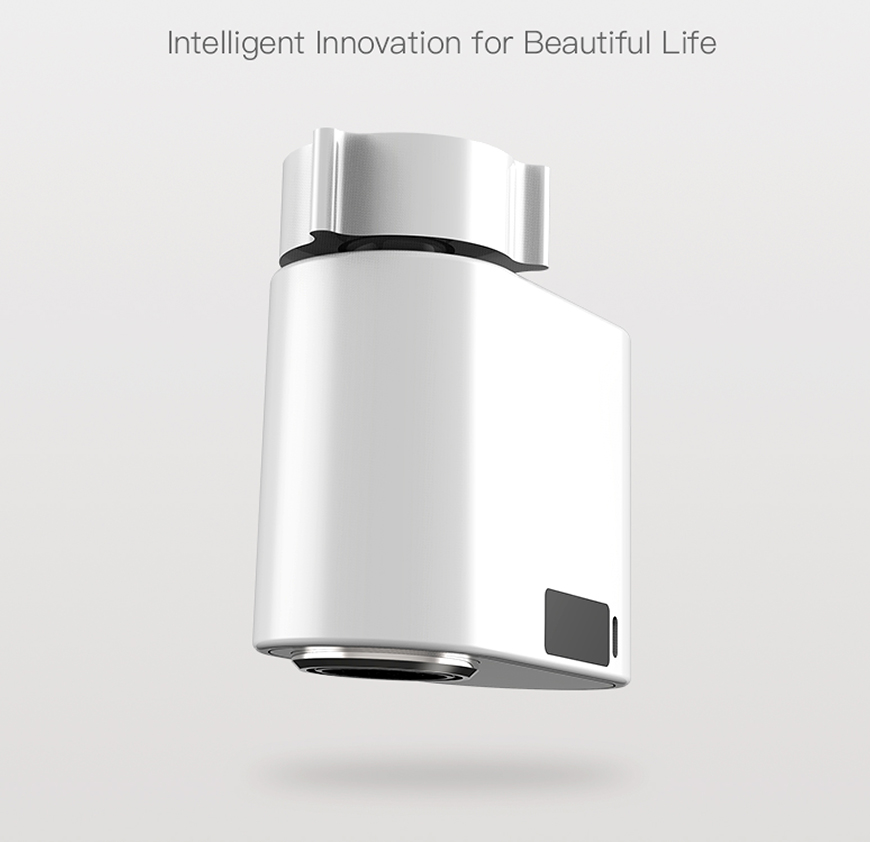

Infrared Motion Sensor Tap Adaptor

Product size: 60 x 29 x 44 mm

Accessories: one intelligent water-saving

device, one faucet adapter

Water pressure required: 0.05-0.8 Mpa

Standard: CJ/T194-2014

Water Temperature: <75C

Charging duration: 2 hours from zero battery to full battery

Battery life: about 10 months

Sensing distance: 0-5.5cm

Leakage after installation

Please make sure a washer is properly placed between the device and

the faucet and the washer is of proper thickness. Wrap teflon tape

necessary

(2) Please make sure the device is tightly screwed down

Please make sure the water pressure is within the range of 0.05-08MPa

Water does not flow out after sensing

O Please make sure the faucet is turn on and water supply is not cut off

(2) Please make sure your movement is within the detection range(0-5. 5cm)

3 Please check if the sensing area is covered by water or vapor and wipe

it clean if there is any

4)Please make sure no obstacles are placed near the sensing area within

the range of 20 cm

5) Please check there is enough battery. When your hands move close to

the sensing area and the indicator light flashes red or doesn ' t flash at all,

please charge the battery in time

( 6)Please make sure the water pressure is within the range of 0.05-08MPa

The water doesnt stop when using

Please check if the sensing area is covered by water or vapor and wipe

it clean if there is any

(2 Please make sure no obstacles are placed near the sensing area within

the range of 20 cm

Please make sure there is no highly reflective objects around the device

If there is any, remove it or adjust the direction of the reflective side

Water flow narrows after some time

(1 Please make sure the faucet and the inlet angel valve are fully tumed on

(2) If necessary, remove the device and clean up the filter on the inlet side

and the aerator to prevent blocking

Battery Charging

The device is charged through a Micro USB interface. It can be charged

directly by a battery tank or after disconnected from the faucet. When the

battery is low, the light on the sensing area flashes red to indicate the

need of recharging. The light remains red when charging and tums green

when the battery is full. Please make sure the faucet is tumed off before

charging the battery

2 The interface for battery charging is waterproof. After charging, please

tightly press the plug against the interface to prevent corrosion

Abnormal change of water temperature

(1 Some models of water heaters may see the backflow of cold/hot water

due to the differential water pressure. Installation of a check valve m

solve this problem

(2) Please make sure the temperature is no higher than 75 degrees Celsius

to prevent damage to the device
